Apparel CAD software of the SDS®-ONE APEX series is now available as a long-awaited subscription service.
Patternmaking, grading, and marking/nesting are each offered as independent software,
supporting the entire manufacturing process from pattern design to size development and cutting anytime, anywhere.
CAD software by a CAM manufacturer
based on expertise of a patternmaker
Synergy between cutting machine and software
yields higher efficiency and operability.
CAD software by a CAM manufacturer
based on expertise of a patternmaker
Synergy between cutting machine and software
yields higher efficiency and operability.
Benefits of APEXFiz® PGM
User-friendly operation
Pattern CADs typically operate based on lines that make up each pattern.
APEXFiz® PGM on the other hand operates on the principle of the "plane," or "surface" of each pattern.
Instead of working with lines and points, the patternmaker can manipulate entire patterns, just like in manual patternmaking.
The user-friendly software menu can also be customized.
Smooth integration of PGM software
Switching between the three software for patternmaking, grading, and marking is seamless.
If the master pattern is modified after marker data and grading data are created,
the data is automatically updated for improved efficiency.
High compatibility with cutting machines (CAM)
APEXFiz® PGM is equipped with functions for controlling cutting machine operation as well as for modifying data for efficient cutting.
Based on the unique perspective that only a CAM manufacturer can offer,
it provides a smooth production flow in conjunction with SHIMA SEIKI's "P-CAM®" series, contributing to improved cutting accuracy.
APEXFiz® realizes digital transformation (DX) in the planning process,
facilitating sustainable manufacturing.
We provide solutions for individual situations and needs.
Please feel free to consult us.
Software Lineup
APEXFiz® PGM offers the following software lineup.
Feel free to contact us for advice in product selection.
Patternmaking
Grading
3D
(option)
Patternmaking
Marking
3D
(option)
Patternmaking
Grading
Marking
3D
(option)
Software Lineup
APEXFiz® PGM offers the following software lineup.
Feel free to contact us for advice in product selection.
Patternmaking
Grading
3D(option)
Patternmaking
Marking
3D(option)
Patternmaking
Marking
Grading
3D(option)
System Requirements
Please follow the system requirements below when installing APEXFiz® PGM.
APEXFiz® PGM may not work properly if these requirements are not met.
| Standard | 3D (Option) | |||
|---|---|---|---|---|
| Minimum | Recom'd | Minimum | Recom'd | |
| OS |
Windows10 Home / Pro and Enterprise 64-bit 22H2 or later (Recommended : Pro or higher) Windows11 Home / Pro and Enterprise 64 bit 23H2 or later (Recommended : Pro or higher)
*Only officially supported operating systems by Microsoft are eligible.
*All LTSC versions are not supported. *Please note that Windows 10 will no longer be supported by Microsoft as of October 14, 2025. |
|||
| CPU |
64-bit supported Intel or AMD multi-core CPU *It does not work on ARM architecture CPUs (Snapdragon series etc.). Minimum : With using standard : Intel 10th generation Core i5 Base clock 2.0GHz With using 3D option : Intel 10th generation Core i5 Base clock 3.0GHz Recommended : Intel 10th generation Core i7 with a Base clock of 3.0GHz or higher |
|||
| Intel Core i5-8400 | Intel Core i7-10700 or higher | Intel Core i7-8700 | Intel Core i7-10700 or higher | |
| RAM | 8GB | 16GB or higher | 16GB | 32GB or higher |
| GPU | CPU Built-in GPU (Onboard GPU) |
NVIDIA T400 or higher NVIDIA GeForce GT1030 or higher |
NVIDIA Quadro P620 NVIDIA GeForce GTX1050Ti |
NVIDIA RTX4500 or higher NVIDIA GeForce RTX3080Ti or higher (8GB or more memory recommended) |
| *AMD GPUs (including GPUs with built-in AMD CPUs) may not operate properly. | ||||
| Monitor |
Full HD (1920 x 1080 resolution) or higher *Operation with multiple monitors (dual monitor / multi-monitor) is not guaranteed. |
|||
| Storage |
4GB or more free space on C drive is required *At least another 4GB is required for version up. |
45GB or more free space on C drive is required *At least another 45GB is required for version up. |
||
| Pen tablet | Supported (Wacom tablet recommended) | |||
| Network | Internet connection is required. | |||
|
* Even if the system requirements are met, there is a possibility that the application may not function properly due to compatibility issues or settings with specific devices, antivirus software, security software. * SHIMA SEIKI software is NOT guaranteed for VM (Virtual Machine). |
||||
Options
APEXFiz® PGM offers a variety of options.
For more details, please contact us.
Conversion to General Formats
Conversion to
General Formats
Data can be exchanged with other CAD systems and cutting machines, useful when working with a variety of businesses.
AutoMarking Premium2
AutoMarking
Premium2
We also offer proprietary automatic marking software (nesting software) that achieves an increase in yield rate.
3D Option
3D
Option
By performing draping and toile checking in 3D, patterns can be created more accurately while visualizing the final product.
Reliable Support

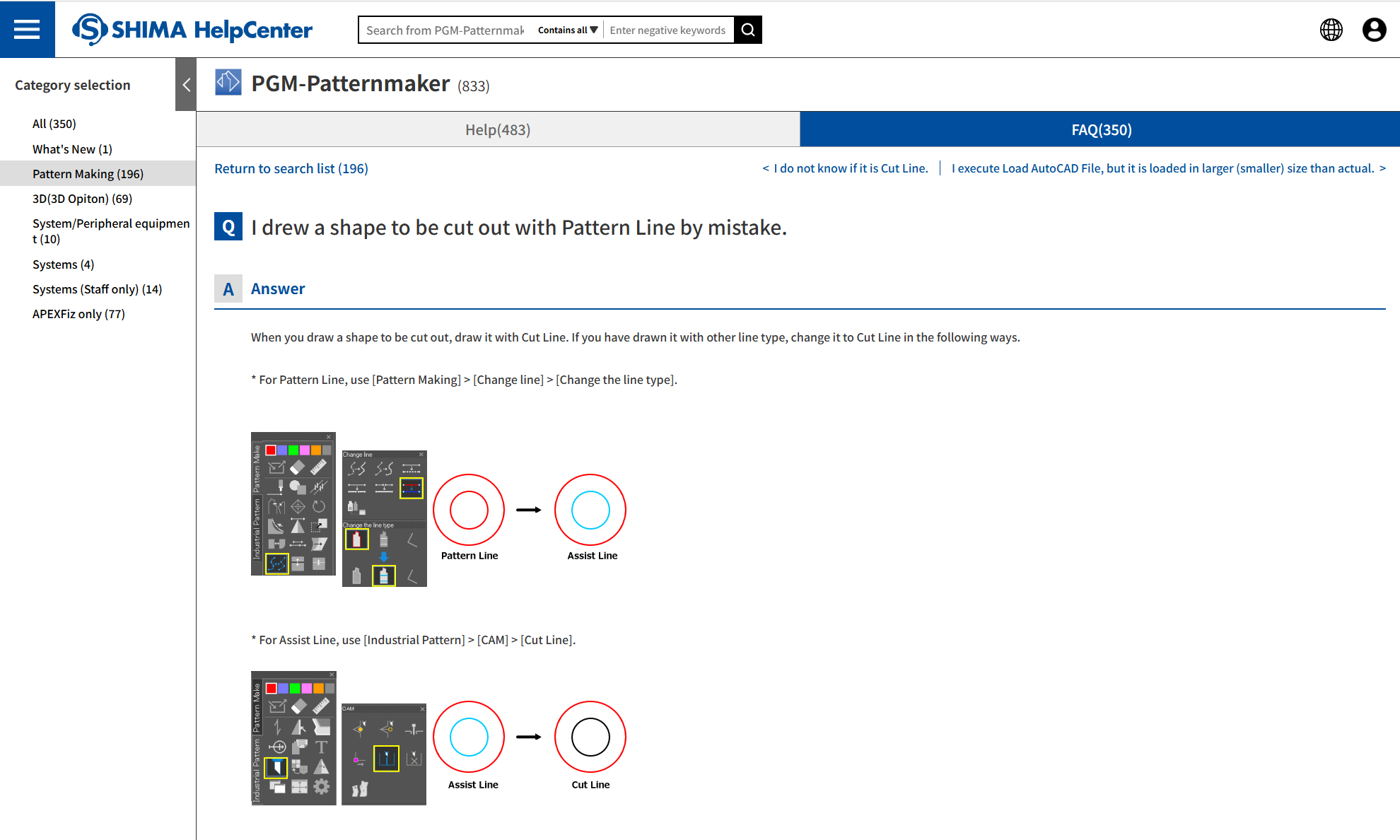

SHIMA HelpCenter
A customer support site that integrates Help, FAQs, etc. into one place, leading to smart solutions to questions and problems during use by keyword search and video explanations.
SHIMANAVI®
Online lectures are available for APEXFiz® PGM. You can take the latest lectures at your own pace and at your own convenience. A variety of courses are offered to meet customer needs.
We provide solutions for individual situations and needs.
Please feel free to consult us.
