Computerized Fabric Cutting Machine Function List / Apparel CAD Function List

Computerized Fabric Cutting Machine Function List

P-CAM131/132/161/162/181/182/183/201/202/221/222/223

Highly Accurate Cutting

Highly Accurate Cutting

P-CAM machines feature a highly sophisticated cutting mechanism with a reciprocating knife for precision cutting through fabrics up to 3 inches in thickness. P-CAM also features a special function to cool the blade while cutting material that can melt and adhere to the blade. An improved knife sharpening system also permits more precise cutting.

Knife Width Auto Measurement Function

Knife Width Auto Measurement Function

For machines with a reciprocating knife, the knife blade becomes worn from repeated cutting and sharpening, making precision cutting more difficult. To alleviate this situation, P-CAM automatically measures the actual knife blade width and adjusts the cutting parameters accordingly, thereby maintaining accuracy for detailed cutting such as sharp corners and notches. The Knife Width Auto Measurement Function also monitors blade wear in real-time, notifying the operator when replacement is necessary.

Suction Chamber Conveyor System

Suction Chamber Conveyor System

For conveyor-type machines, a conveyor system is housed within the suction chamber, permitting suction while feeding fabric, "MotionX". With higher suction efficiency blower output can be reduced for reduced power consumption and quieter operation.

Suction Chamber Cleaning

Suction Chamber Cleaning

By housing the conveyor system inside the suction chamber, cutting waste can be disposed of continuously.

Sheet Sealer (Optional)

Sheet Sealer (Optional)

The Sheet Sealer prevents air leakage through the cover sheet, allowing higher efficiency of the blower motor. Blower output can then be reduced, contributing to lower electrical consumption and quieter operation. On P-CAM183/223 the cutting thickness is measured automatically, and the Sheet Sealer then switches between two different height positions automatically.

Pick-Up Projector

Pick-Up Projector (Optional)

Cut parts are projected in color onto the fabric along with associated text information to increase efficiency and to prevent mistakes in pick-up and sorting.

Drill Upgrade

Drill Upgrade (Optional)

Marking is used for darts and pockets in garments. The drill reinforced type option offers choices for 1, 2 or 4 drills, reducing time and potential for human error while changing drill bits.

Drill Waste Ejection

Drill Waste Ejection (Optional)

Drill waste is maintained within the material, to prevent suction leakage for stable cutting.

P-CAM160L/270L

Highly Accurate Cutting

Highly Accurate Cutting

SHIMA SEIKI's P-CAM160L and 170L feature a compact, lightweight cutting head for remarkably quick and precise cutting using a circular knife.

Recognizing Material Defects

Recognizing Material Defects

A scanning camera detects colored tape used to indicate defects in the leather, allowing the user to rank products according to material quality.

Knife Width Auto Measurement Function

Knife Width Auto Measurement Function

As the knife blade gradually wears from repeated cutting and sharpening, precision cutting becomes increasingly difficult. To alleviate this situation, P-CAM measures the knife blade width automatically, thereby maintaining accuracy for such detailed cutting as sharp corners and notches. The Knife Width Auto Measurement Function also monitors blade wear in realtime, notifying the operator when replacement of the blade is necessary.

P-CAM100C/120C/160C/180C
(Fixed-Type Cutting Surface)

Highly Accurate Cutting

Highly Accurate Cutting

A cutting method can be selected among drag knife, reciprocating knife and ultrasonic knife. The drag knife can be replaced easily as a unit. Furthermore, the reciprocating knife utilizes automatic knife sharpening for increased cutting accuracy.

Labeling Unit

Labeling Unit (Optional)

With special labeling head patterns that are placed next to each other and share a common pattern line, P-CAM can cut lines with a single cut for improved accuracy and efficiency. Because the labeling affixing part is movable, it is possible to affix a label to a multi-ply fabric of a maximum 55 mm.

Knife Cleaning

Knife Cleaning (Optional)

For cutting materials such as fiber-reinforced plastics, resins within the fiber tend to adhere to the knife, reducing cutting precision. The knife is therefore cleaned automatically at a set cutting distance. A Knife Auto Cleaning Function is available on P-CAM equipped with a drag knife and an ultrasonic knife.

Customized Cutting Area (Optional)

The compact 880 mm cutting length of P-CAM can be extended by 912 mm spans. Long items such as aircraft wings can be cut without splicing.

Common Functions of P-CAM

Double-Cut Prevention Function Cutting Speed Auto Set Function

Double-Cut Prevention Function

When cutting two patterns next to each other that share a common pattern line, P-CAM can cut the line with a single cut for improved accuracy and efficiency, reducing the time to cut twice. By applying this process automatically, the lead time for editing data can also be reduced.


Cutting Speed Auto Set Function

When cutting two lines between patterns that are next to each other, cutting speed is reduced for improved accuracy and efficiency. By applying this process automatically, the lead time for editing data can also be reduced.

Pattern Matching Camera

Pattern Matching Camera (Optional)

It is possible to adjust the pattern position and skew by displaying the pattern-matching position on the control panel. Using a camera, the operator can adjust patterns remotely, even at a distance.


Multi-Pattern Matching (Optional)

By displaying photos of patterns for different parts side-by-side, patterns that normally would not match up can be matched at the same position.

Cutting Table Brush

Cutting Table Brush

With the brush-type cutting table, strong and effective suction can be applied across the entire material for stable cutting. The brushes last a long time, and if necessary, they can be exchanged piece-by-piece for easy maintenance.

Projector

Projector (Optional)

Pattern images are projected onto the fabric based on cutting data for effective control over parts positioning, and re-positioning, when necessary. Any fabric skew is considered when cutting, making it easy to perform pattern matching. It is also possible to reposition the patterns to avoid wrinkles and other flaws in the material. The projector can be further used to recut smaller parts out of large rough parts in multi-ply applications.

Touch-Sensitive Control Monitor

Touch-Sensitive Control Monitor

A large touch-sensitive LCD monitor is used for the operation screen. The menu is designed for easy operation, even for beginners. In addition to English and Japanese menus, Traditional and Simplified Chinese menus are also available to support current trends in global sourcing.

P-EDITOR

P-EDITOR (Optional)

In order for our customers to maximize their use of P-CAM's cutting accuracy and efficiency, we offer P-EDITOR software that can edit cutting data created on third-party CAD systems. For example, special points on P-CAM (start, reverse, fold, etc.) can now be set. Such commands as speed change per part, notch, drill, as well as the addition, removal, and rearranging of parts can be performed. Even cutting parameters where the use was previously limited can now be utilized for high-precision cutting.

Stop Units

Stop Units

Emergency stop switches are located on all four corners of the machine and stop units such as a pause button and collision detection bar are fitted on the Y-beam to ensure safe operation.

Pen Plotting (Optional)

Pen Plotting (Optional)

It is possible to add pattern information on to each piece on the top vinyl sheet using the plotting pen. Parts names and size information can be inscribed to help organize parts for further stages in production, adding to higher efficiency.

Other Functions

In addition to the above features, P-CAM is equipped with a function to cut waste into pieces, a laser marking function, and a function that limits cutting only to necessary parts. Furthermore, functions such as automatic scheduling of cutting data and converting cutting requirements into files, contribute to efficient operation. Stronger parts and simplified maintenance requirements make P-CAM an extremely reliable cutting machine.

Apparel CAD System Function List

CAD System

User-Friendly Operating Environment

User-Friendly Operating Environment

The familiar Shimatronic Design System operating environment consists of a pressure-sensitive cordless pen and digitizer tablet as well as a trackball unit with duplicate keys for often-used functions, allowing simultaneous use of both hands for maximum productivity. In addition, SDS-ONE APEX series features such useful functions as online help, macro functions and seamless switching between patternmaking, grading and marking software programs.

Patternmaking

Patternmaking

With SDS-ONE APEX series patternmaking software, high-quality pattern can be created easily. Comprehensive drawing and editing functions allow detailed control approaching that of manual patternmaking.

Grading

Grading

Correct sizing of products can be achieved with grading software. Users can choose between pitch-formula and rule-formula grading. With such high-quality grading features as line-check and automatic pitch calculation, optimum grading pitch can be worked out for each product size.

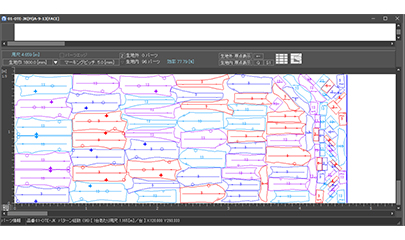

Marking

Marking

In addition to manual marking, SDS-ONE APEX series marking software features ultra-high speed automatic marking for instant creation of markers. The software is also capable of creating markers in sequence, allowing fully automated marking of multiple jobs. Markers can be transferred to P-CAM fabric cutting machine, for efficient and accurate cutting.

Evolving Apparel CAD Software

New PGM software released in 2018 features a user-interface that allows speedy, intuitive operation by patternmakers to bring their ideas to shape. Operation steps for each function are simplified, and working efficiency is improved on average by approximately 40% compared with previous CAD software.

Taking Full Advantage of 3D Capability

Creating 3D model

Creating 3D model

Original model can be created by setting body measurements, shape and color of skin and hair. Posing can be changed freely to meet various needs.

Patternmaking to 3D Fitting

Patternmaking to 3D Fitting

Patterns created on PGM software can be combined with sewing information and fitted onto a 3D model. The 3D fitting images can be created in consideration of additional fabric characteristics. It is even possible to display fabric tension and pressure distribution, contributing to effective product engineering.

3D to 2D Development

3D to 2D Development

2D parts can be extracted from 3D modeling data by drawing cut lines and opening it up. Body-fitting patterns can be created based on stored body data.

3D Toile

3D Toile

Pattern is created with draping to toile check such as inputting darts, tuck, and seam line, etc. in 3D simulation.

3D Mapping/Item Coordination

3D Mapping/Item Coordination

Actual fabrics or simulated materials can be draped onto 3D fitting images. Multiple coordinate items can be combined as well.

User Support by SHIMA SEIKI

Service & Maintenance

Service & Maintenance

SHIMA SEIKI has established a user support system worldwide. Customers can use our products with reassurance from a comprehensive maintenance program, training programs suited to each customer's needs, and a steady, long-term supply of genuine parts.

SHIMA online

SHIMA online

The SHIMA SEIKI Online Services portal site is a one-stop source for accessing various web-based services.
From fashion information and PLM solutions to sample data downloads, FAQs and tutorials, we support our users in all stages of the product supply chain.

We can tailor solutions to fit each customer's requirements.
Please feel free to contact us.
